Whether storing vegetables, fruits, meat, or seafood, this piston refrigeration compressor gets the job done. Power ranges from 3HP to 50HP, with cooling capacity varying accordingly. Its strengths are fast cooling, quiet operation, and high efficiency, backed by dependable after-sales service and fast delivery.

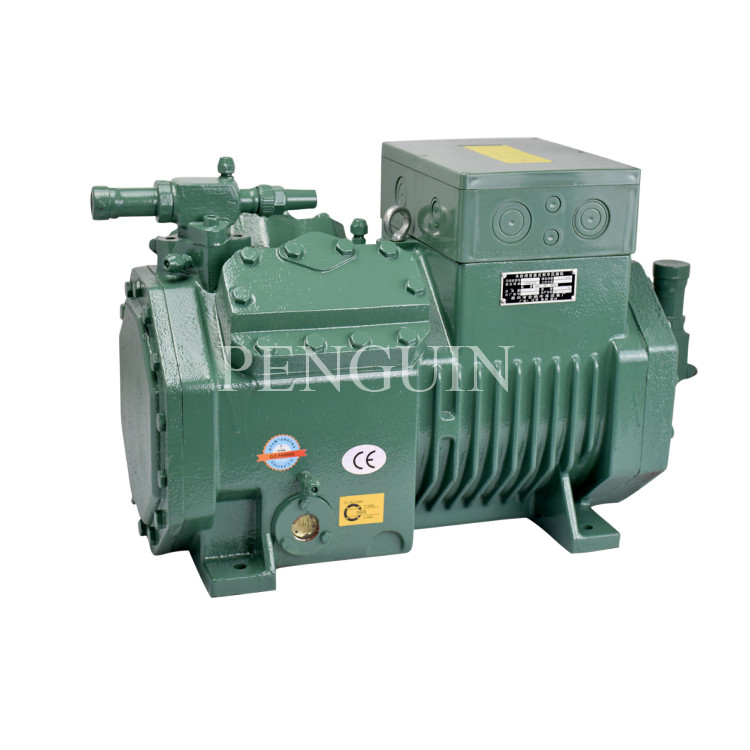

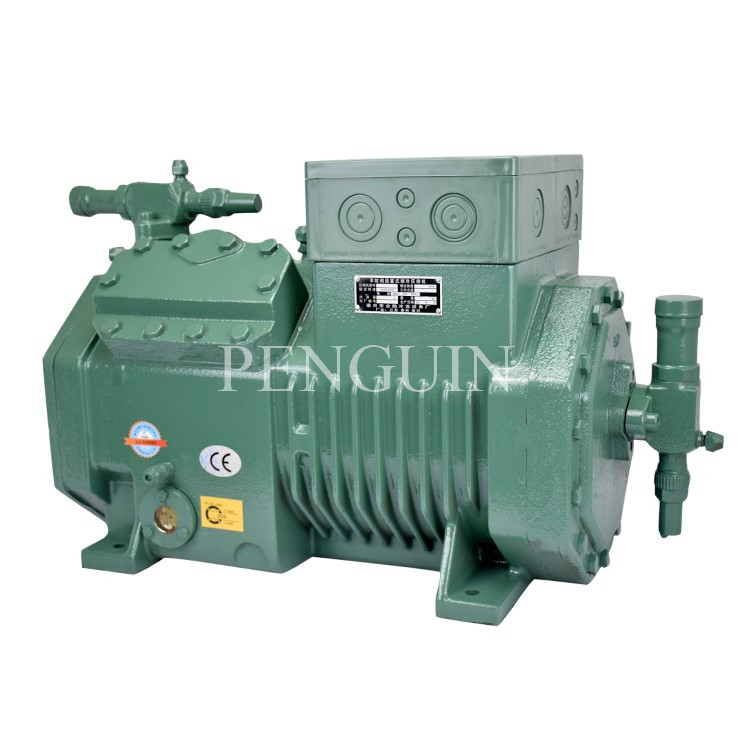

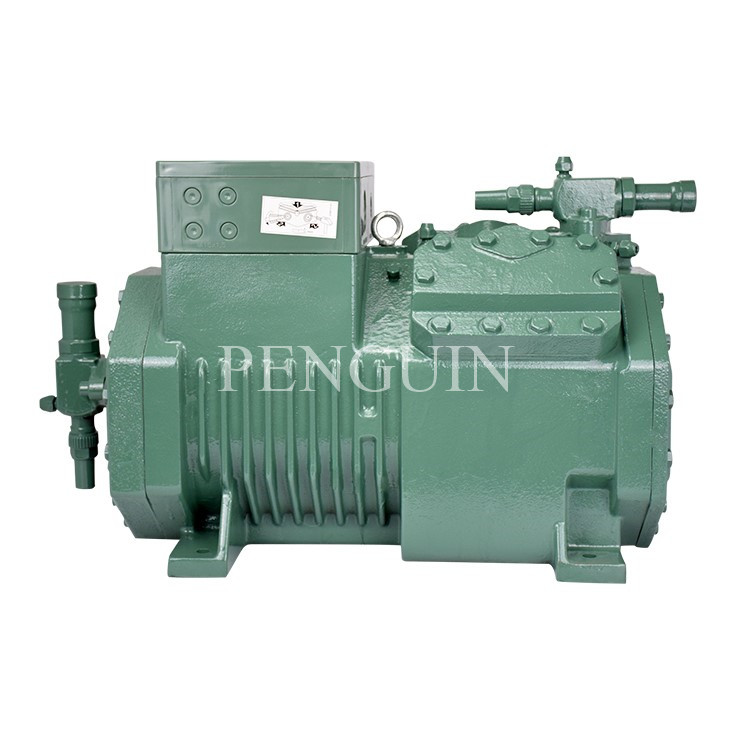

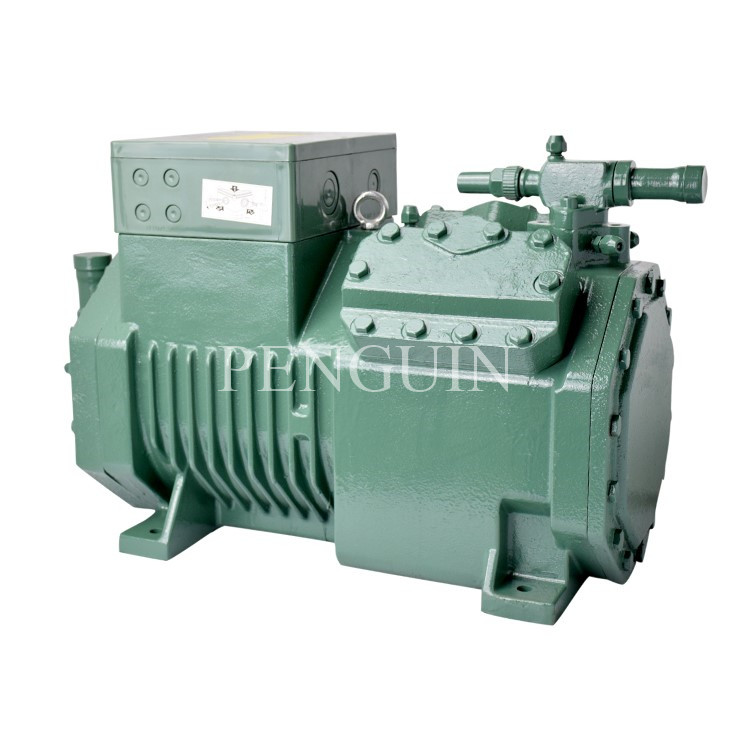

As a premier manufacturer and direct supplier of commercial refrigeration solutions, we present the 12HP frozen open-type cold room condensing unit reciprocating compressor.
Engineered for heavy-duty industrial applications, this unit delivers rapid cooling and unwavering reliability for large-scale storage facilities.
Direct from the manufacturer sourcing ensures optimal cost-efficiency for your procurement budget.
Features a robust 12HP piston mechanism designed for rapid temperature reduction and sustained thermal control.
Highly versatile application across food processing, pharmaceuticals, logistics, and hospitality sectors.
Product Characteristics ← Click to learn more. If you are interested.
Step into a world of uncompromised thermal control with our 12HP frozen open-type cold room condensing unit. When you stand beside this reciprocating compressor in an active industrial facility, the first thing you notice is the steady, rhythmic hum—a sonic testament to its precision-machined internal components and perfectly balanced crankshaft. The heavy-gauge steel casing feels cool and solid to the touch, coated in a premium, corrosion-resistant finish that effortlessly shrugs off the harsh, moisture-laden environments typical of commercial freezing operations. By integrating this powerhouse into your facility, you are not merely purchasing equipment; you are investing in absolute product safety and significantly reduced spoilage. The rapid heat extraction capability ensures that your inventory, whether delicate seafood, premium meats, or temperature-sensitive pharmaceuticals, reaches its target core temperature swiftly, locking in freshness and extending shelf life. Every cast-iron cylinder and meticulously wound motor coil is designed to minimize friction and maximize heat transfer. This engineering excellence directly translates into lower monthly utility expenditures and a vastly improved bottom line for your operational budget, giving you peace of mind year after year.
Compressor Model | Motor Nominal Power HP/kW | Displacement (1450rpm 50Hz/60H | cylinders× diameter× itinerary mm | Suction, Discharge Line mm | Oil Volume L | Power Supply V/Ф/Hz | Electrical Parameters | Crankcase Heater （220V） W | Fuel supply mode | Weight kg | ||
DL Discharge Valve | SL Suction Valve | （A） Max Operating Current | （A） Starting/ Locked Current | |||||||||
4VB8.2Z | 8/5.5 | 41.3/49.9 | 4×Ф60×42 | Ф28 | Ф35 | 2.6 | 380- 420YY/3/50 440- 480YY/3/60 | 17 | 49/81 | 120 | Centrifugal lubrication | 134 |
4VB12.2G | 12/8.8 | 41.3/49.9 | 4×Ф60×42 | Ф28 | Ф35 | 2.6 | 24 | 69/113 | 140 | 141 | ||
4VB10.2Z | 10/7.5 | 48.5/58.5 | 4×Ф65×42 | Ф28 | Ф35 | 2.6 | 21 | 59/99 | 140 | 139 | ||
4VB15.2G | 15/10.5 | 48.5/58.5 | 4×Ф65×42 | Ф28 | Ф42 | 2.6 | 31 | 81/132 | 140 | 147 | ||
4VB12.2Z | 12/8.8 | 56.2/67.9 | 4×Ф70×42 | Ф28 | Ф35 | 2.6 | 24 | 69/113 | 140 | 141 | ||
4VB20.2G | 20/15 | 56.2/67.9 | 4×Ф70×42 | Ф28 | Ф42 | 2.6 | 37 | 97/158 | 140 | 150 | ||
Elevate your refrigeration infrastructure with engineering that prioritizes long-term value and operational excellence. This reciprocating compressor is crafted to mitigate common industry pain points, from excessive energy draw to frequent maintenance downtimes. By focusing on thermodynamic efficiency and structural integrity, it delivers a seamless cooling experience.
Optimized Thermal Dynamics: Rapidly pulls down temperatures to safeguard perishable inventories against bacterial growth and spoilage, ensuring product integrity.
Heavy-Duty Construction: The rugged cast-iron body and reinforced valve plates are built to endure continuous, high-stress commercial cycles without structural fatigue.
Streamlined Maintenance Access: Thoughtfully positioned service valves and oil sight glasses allow facility technicians to perform routine checks swiftly, minimizing operational interruptions.
Consistent Volumetric Efficiency: Maintains stable refrigerant flow even under fluctuating ambient conditions, ensuring your cold room remains at the precise setpoint regardless of external weather.
Extended Component Lifespan: Advanced internal lubrication pathways reduce metal-on-metal wear, significantly extending the operational life of the core compression mechanism.
The heart of any commercial cooling system lies in its moving parts, and this unit is anchored by a premium-grade piston mechanism designed for unrelenting endurance. We understand that equipment failure is not an option when safeguarding high-value commodities. Therefore, every internal component is machined to exacting tolerances, mirroring the stringent standards of top-tier global brands to guarantee maximum uptime.
Precision-Forged Crankshafts: Engineered to distribute mechanical stress evenly, drastically reducing the risk of fracture during high-load startups and continuous operation.
Wear-Resistant Piston Rings: Formulated from advanced composite materials to maintain a flawless seal, preventing blow-by and ensuring maximum compression over tens of thousands of hours.
Robust Valve Reeds: Fabricated from impact-resistant steel, these reeds respond instantly to pressure changes, optimizing the intake and exhaust cycles for peak reliability.
Industrial-Grade Motor Stator: Built to handle voltage fluctuations common in industrial parks, preventing premature electrical burnout and ensuring continuous cooling power.
In today's competitive landscape, minimizing the Total Cost of Ownership (TCO) is paramount. This 12HP condensing unit is a masterclass in thermodynamic efficiency, designed to transform electrical input into maximum cooling output. You will notice a tangible reduction in your facility's energy consumption, freeing up capital for other operational needs while maintaining strict temperature protocols.
High-Yield Heat Exchange: Paired with large-volume condensers and external rotor fans, the system aggressively dissipates heat, preventing compressor strain and lowering power draw.
Optimized Motor Winding: The internal electrical motor is wound with high-purity copper, minimizing electrical resistance and heat generation, thereby slashing power waste.
Dynamic Load Adaptation: The reciprocating design efficiently matches the cooling load, ensuring that power is only consumed when absolutely necessary to maintain the thermal envelope.
Reduced Carbon Footprint: By maximizing the cooling output per kilowatt-hour, this unit helps your facility meet corporate sustainability goals without sacrificing performance.
A powerful cooling system does not have to be a disruptive one. We have engineered this compressor to operate with a refined, subdued acoustic profile, making it highly suitable for installations near noise-sensitive environments like hospitality venues, retail spaces, or urban commercial centers. The smooth operation also translates to less mechanical vibration, protecting the integrity of your entire piping network.
Acoustically Tuned Castings: The dense metal housing naturally dampens high-frequency mechanical noises before they escape into the surrounding environment.
Vibration Isolation Mounting: Equipped with heavy-duty rubber dampeners that absorb kinetic energy, preventing the transmission of tremors through the facility floor.
Balanced Drive Mechanism: The internal gears and counterweights are dynamically balanced at the factory, resulting in a whisper-steady rotation that extends the lifespan of all connected pipework.
Smooth Startup Sequence: Engineered to minimize the initial torque shock, reducing the characteristic "clunk" associated with heavy industrial compressor activation.
Flexibility is crucial for modern industrial applications. Whether your facility requires the gentle chill of a medium-temperature produce room or the deep freeze of a blast freezer, this unit adapts seamlessly. Furthermore, it is designed to align with evolving environmental regulations, offering broad compatibility with various modern refrigerants to ensure long-term compliance.
Multi-Temperature Mastery: Flawlessly operates across high, medium, low, and ultra-low (quick-freeze) temperature spectrums, providing a unified solution for diverse storage needs.
Eco-Friendly Refrigerant Ready: Fully compatible with a wide array of gases, including R22, R404A, R507A, R448A, and R449A, future-proofing your investment against changing environmental policies.
Harsh Ambient Resilience: Engineered to maintain stable compression ratios even when installed in geographical locations with extreme ambient heat or high humidity.
Versatile Application Scope: Ideal for ice machines, large refrigerated warehouses, chemical refineries, supermarkets, and food & beverage factories.
Space is a premium commodity in any commercial facility. This open-type condensing unit features a highly compact, integrated framework that maximizes your available footprint. Beyond aesthetics, this intelligent layout is a deliberate effort to simplify the lives of installation crews and maintenance personnel, drastically cutting down on labor hours and service costs.
Space-Saving Footprint: The condensed architecture allows for installation in tight mechanical rooms without sacrificing essential airflow or thermodynamic performance.
Accessible Component Layout: Every filter, valve, and electrical terminal is positioned facing outward, allowing technicians to perform swift diagnostics and part replacements without dismantling the entire unit.
Standardized Fittings: Utilizes universally recognized connection sizes (such as Ф28mm suction and Ф35/42mm discharge lines), ensuring that replacement parts and piping are easily sourced locally.
Modular Parts Assembly: Designed so that individual components can be isolated and serviced, preventing the need for total system shutdowns during routine upkeep.
Safeguard your thermal assets with an intelligent nervous system. Modern cooling demands more than just raw power; it requires vigilant monitoring. This unit integrates advanced protective measures that act as an invisible shield, constantly evaluating operating parameters to prevent catastrophic failures before they occur, ensuring true peace of mind for facility managers.
Comprehensive Pressure Monitoring: Built-in high and low-pressure switches instantly cut power if system pressures deviate from safe operational limits, preventing compressor burnout.
Thermal Overload Protection: The motor is safeguarded by precise thermal sensors that detect abnormal temperature spikes, shielding the internal windings from severe damage.
Automated Lubrication Security: The centrifugal lubrication system ensures a continuous film of oil on all moving parts, while sensors stand ready to alert operators if oil levels drop dangerously low.
Integrated Crankcase Heater: The 120W/140W heater automatically prevents liquid refrigerant migration during off-cycles, ensuring safe, fully lubricated startups every time.
No two commercial cooling projects are exactly alike, which is why off-the-shelf solutions often fall short. As a dedicated manufacturer, we bridge the gap between standard equipment and your unique facility requirements. Our engineering team acts as an extension of your own, providing deep technical support from the initial blueprint to the final commissioning.
Bespoke System Design: We offer tailored selection advice, matching the exact horsepower and displacement to your specific heat load calculations and facility dimensions.
Comprehensive Technical Documentation: Receive detailed CAD drawings, thermodynamic performance charts, and electrical schematics to streamline your site planning and approval processes.
End-to-End Project Support: From the first consultation to post-installation troubleshooting, our dedicated engineers ensure your customized unit integrates flawlessly into your existing infrastructure.
Scalable Solutions: Whether you need a single 12HP unit or a synchronized multi-compressor rack system, our production capabilities scale to meet your exact project demands.
If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise.
And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you.
We can provide designing data and prodcution drawings.
We have a wealth of exhibition experience, where we continuously showcase our products, exchange technologies and listen to customer demands. These are some real-time photos from the exhibition site, witnessing every step of our joint growth with the industry.
The standard products are ready for immediate use, while the customized ones are specially made for you. The difference lies not only in the product itself, but also in the depth of coordination throughout the entire service process.
From the initial communication of the plan to the satisfactory feedback received after the final product was delivered，we have customized products for many customers, these are some projects we did before，Covering various needs and scenarios.
To meet various scenarios and requirements, we have also introduced more product categories, aiming to provide you with a more comprehensive experience. Please click on each category label to quickly browse the preferred products.
-
Partnering with the right equipment supplier is a critical strategic decision that impacts your operational stability for years to come. We do not just build compressors; we engineer long-term reliability. Our manufacturing facilities are equipped with state-of-the-art testing laboratories, ensuring every unit that leaves our floor is ready for the harshest commercial realities.
Direct Source Advantage: By eliminating intermediaries, we provide premium-grade industrial equipment at highly competitive price points, maximizing your procurement budget.
Rigorous Quality Assurance: Every compressor undergoes exhaustive pressure, leak, and electrical run-testing under simulated extreme loads before packaging and dispatch.
Global Supply Chain Agility: With streamlined production processes and robust inventory management, we guarantee rapid fulfillment times to keep your construction or upgrade schedules on track.
Unwavering After-Sales Support: Our commitment continues long after delivery, with a responsive technical support team ready to assist with maintenance guidelines and rapid parts dispatch.
Industry Proven Track Record: Decades of experience supplying top-tier cooling solutions to global markets, backed by a portfolio of successful, high-profile commercial installations.
For optimal performance, we advise checking the oil sight glass weekly to ensure proper levels. A complete oil change and filter replacement should be conducted after the first 100 hours of initial operation, and subsequently every 2,000 to 3,000 hours, depending on the operational load and ambient conditions of your facility.
Yes, this reciprocating compressor is highly adaptable and fully compatible with R404A, as well as other modern refrigerants like R507A and R448A. Ensure that the expansion valves and system lubricants are correctly matched to the chosen refrigerant during the retrofit process to maintain peak efficiency.
The integrated 120W/140W (220V) crankcase heater automatically activates when the compressor cycles off. This prevents the refrigerant from migrating into the oil and condensing, which would otherwise cause oil foaming and inadequate lubrication during the next startup sequence, protecting the mechanical integrity of the unit.
The 4VB12.2G model, along with our other units in this series, is designed to operate on a robust three-phase industrial power supply. It seamlessly accommodates 380-420V at 50Hz or 440-480V at 60Hz, ensuring stable and continuous operation across various regional power grids without requiring external voltage transformers.
Not at all. While termed "open-type" regarding the unit's external structural framework—which allows for enhanced ambient cooling and easier maintenance accessibility—the compressor itself features a highly secure, hermetically sealed internal environment with advanced shaft seals that completely prevent refrigerant leakage and block external moisture or dust ingress.
