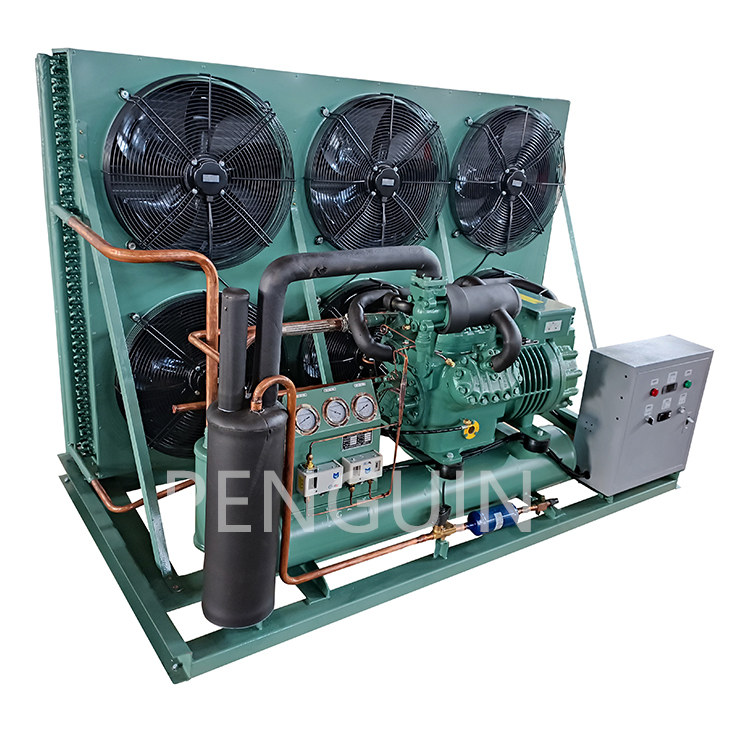

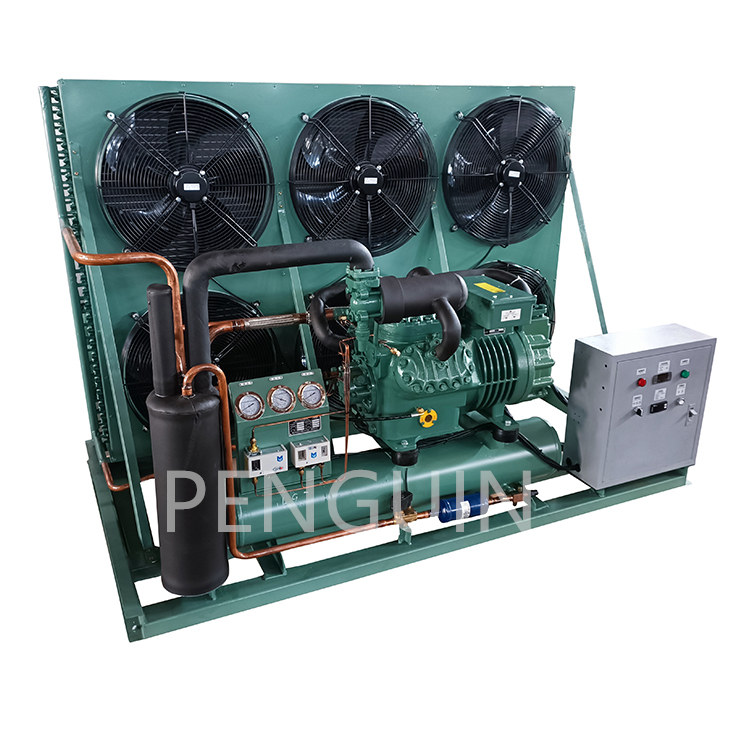

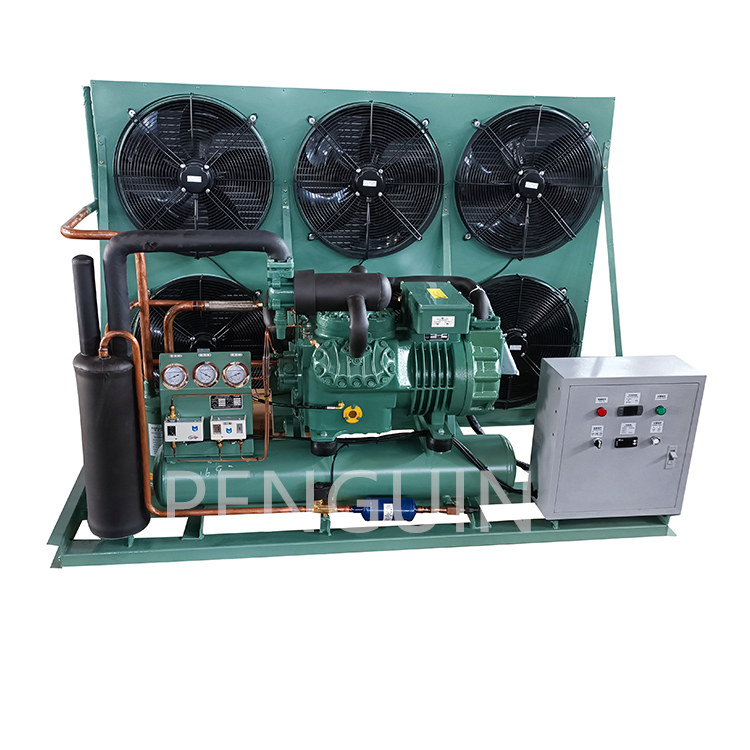

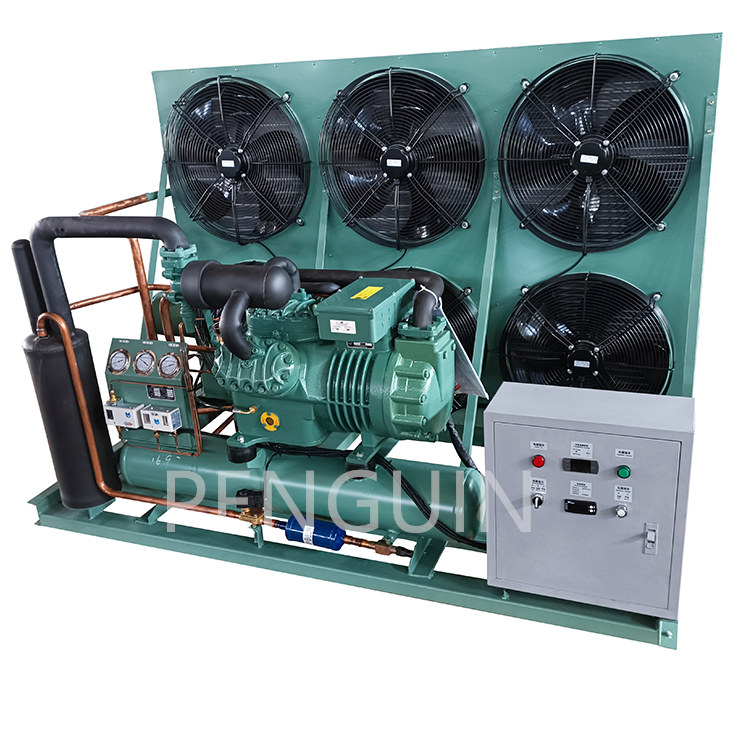

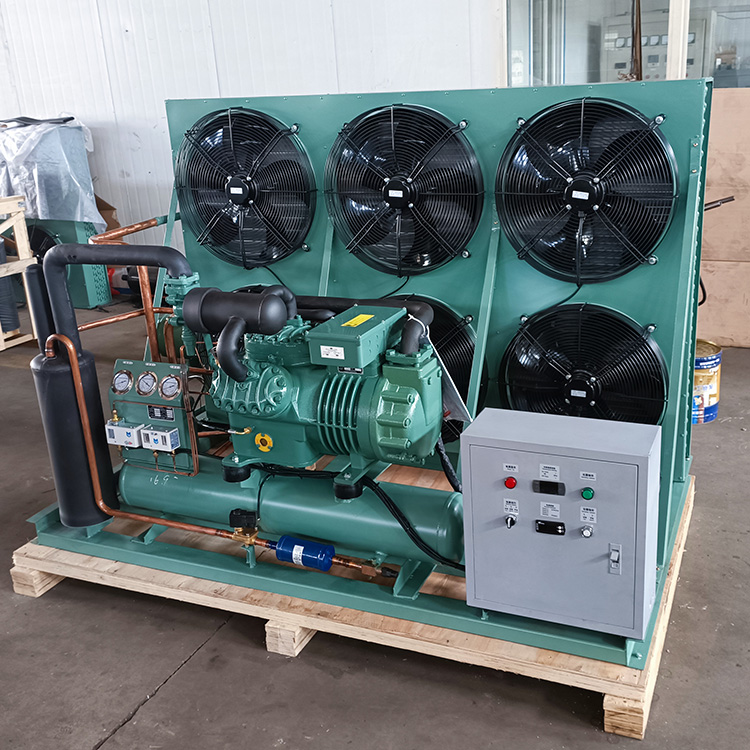

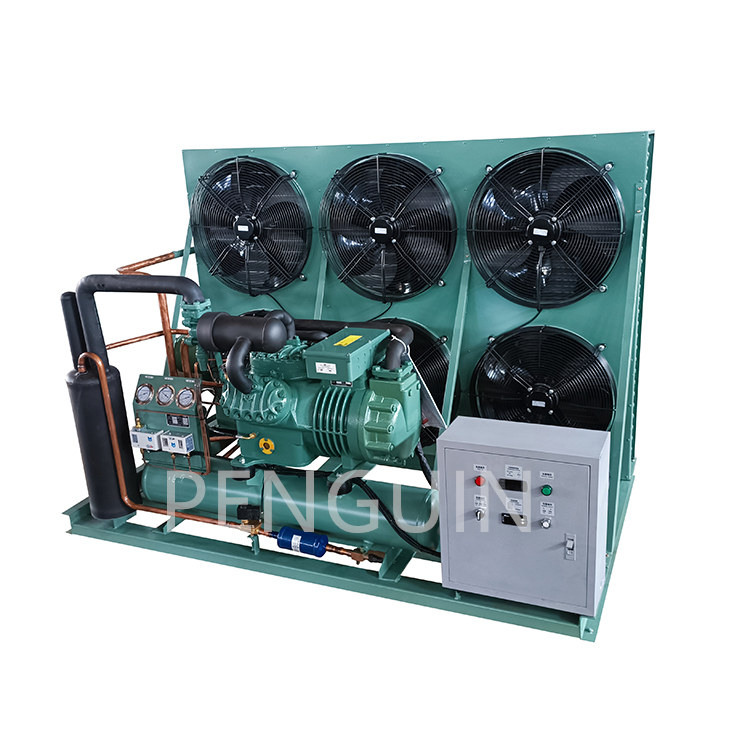

With a piston-type structure, this condensing unit suits a wide range of cold storage applications — vegetables, fruits, meat, and seafood. Horsepower from 3HP to 50HP, cooling capacity varies accordingly. The compressor is known for fast cooling, low noise, and high efficiency, supported by good after-sales service and quick delivery.
Product Characteristics ← Click to learn more. If you are interested.
As a premier industrial manufacturer and global equipment provider, we engineer the Air Cooled Reciprocating Compressor Condensing Unit With 6 Fans to deliver uncompromising thermal management for commercial storage facilities. Built for heavy-duty applications, this system ensures absolute temperature stability.
Engineered with a high-capacity piston-type architecture for rapid thermal extraction.
Integrates a robust 6-fan air-cooled matrix for maximum heat dissipation.
Scalable horsepower configurations ranging from 3HP to 50HP to suit diverse facility sizes.
Designed specifically for the rigorous demands of commercial food and pharmaceutical preservation.
The Air Cooled Reciprocating Compressor Condensing Unit With 6 Fans is meticulously crafted to transform your cold storage operations and safeguard your most temperature-sensitive inventory. When you stand beside this powerhouse, the low, steady hum of the precision-engineered reciprocating compressor speaks volumes about its balanced internal mechanics and advanced vibration-dampening construction. The exterior features a heavy-gauge, corrosion-resistant metallic casing that feels cool and rugged to the touch, specifically designed to withstand harsh environmental conditions while protecting the intricate copper piping and sensitive electrical components within. By harnessing the immense, aerodynamic airflow generated by six optimally pitched fans, this unit rapidly expels ambient heat, ensuring your valuable assets—whether delicate leafy greens, premium cuts of meat, or critical pharmaceuticals—remain in a state of perfect preservation. The seamless integration of these mechanical components translates directly into lower operational fatigue and a drastic reduction in spoilage risks. Your facility will benefit from a system that not only chills the environment but fundamentally stabilizes your entire supply chain, offering profound peace of mind and a tangible return on investment through sustained energy savings, reduced maintenance intervals, and relentless day-to-day reliability.
Parameter Key | Specification Value |
|---|---|
Product Name | Air Cooled Reciprocating Compressor Condensing Unit With 6 Fans |
Compressor Structure | Piston-type / Reciprocating |
Cooling Method | Air Cooled |
Fan Quantity | 6 Fans |
Horsepower (HP) | 3HP to 50HP |
Compressor Features | Fast cooling, low noise, high efficiency |
Applications | Vegetables, fruits, meat, and seafood cold storage |
Refrigerant (Competitor Reference) | R22 / R404A / R134A / R507 |
Voltage (Competitor Reference) | 220V / 380V / 440V, 50Hz / 60Hz |
Temperature Range (Competitor Reference) | Medium to Low Temperature (e.g., -30℃ to +15℃) |
Customization Service | Available |
Engineered to resolve the most demanding thermal challenges in commercial environments, this condensing unit combines raw power with refined mechanical precision. Every component is selected to maximize uptime and minimize operational expenditures.
Accelerated Thermal Extraction: The high-displacement reciprocating compressor pulls heat from the storage environment at an accelerated rate, rapidly achieving target temperatures even after frequent door openings.
Aerodynamic 6-Fan Array: The inclusion of six strategically positioned fans creates a massive, uniform volumetric airflow over the condenser coils, preventing localized heat buildup and ensuring consistent performance during peak summer ambient temperatures.
Industrial-Grade Durability: Coated in weather-resistant, anti-corrosive industrial enamel, the chassis is built to endure highly humid or saline environments without degrading, extending the lifecycle of the internal hardware.
Intelligent Fluid Control: Equipped with premium sight glasses, liquid receivers, and filter terminal boxes, the system allows maintenance personnel to visually verify refrigerant flow and purity instantly, preventing catastrophic mechanical failures.
To fully understand the capabilities of this industrial refrigeration system, we break down its engineering into seven critical dimensions. This detailed analysis demonstrates how the equipment aligns with strict commercial requirements and elevates facility standards.
Facility operators require exact specifications to match equipment with thermal load demands. This unit offers a highly scalable architecture designed to meet precise volumetric requirements.
Scalable Power Output: Available in configurations ranging from a compact 3HP up to a massive 50HP, allowing exact matching to your facility's square footage and thermal load.
Broad Temperature Spectrum: Engineered to operate seamlessly across medium, low, and ultra-low temperature ranges (e.g., -30℃ to +15℃), making it versatile for various preservation needs.
Refrigerant Versatility: Fully compatible with a wide array of industry-standard refrigerants including R22, R404A, R134A, and R507, providing flexibility for specific refrigeration requirements.
Global Electrical Compatibility: Designed to integrate globally with support for 220V, 380V, and 440V power grids at both 50Hz and 60Hz frequencies.
The heart of any refrigeration system is its compressor. We utilize globally recognized component architectures to guarantee relentless performance and mitigate the risk of mechanical breakdown.
Premium Piston Architecture: The reciprocating mechanism is machined to microscopic tolerances, ensuring tight compression cycles and minimal blow-by.
Extended Lifespan: By utilizing hardened steel alloys in the crankshaft and connecting rods, the compressor resists wear even under continuous 24/7 operation.
Time is a critical resource during facility construction or upgrades. This unit's physical design is optimized to drastically reduce installation hours and simplify routine maintenance.
Open-Access Chassis: The structural frame is designed for immediate accessibility. Technicians can reach valves, electrical panels, and compressor heads without dismantling the entire housing.
Pre-Wired Terminal Boxes: Electrical connections are factory-terminated into clearly labeled, weather-sealed junction boxes, eliminating guesswork for on-site electricians.
Vibration-Isolated Mounting: The compressor is mounted on heavy-duty elastomeric isolators, preventing mechanical resonance from transferring to the building structure or damaging connected copper lines.
Optimized Footprint: Despite housing six large fans, the spatial arrangement is highly compact, allowing multiple units to be banked together on crowded facility rooftops.
Reducing operational expenditure (OPEX) is a primary concern for commercial operators. This system is engineered to maximize the Coefficient of Performance (COP) while adhering to modern environmental protocols.
Maximized Heat Exchange: The internally grooved copper tubes and corrugated aluminum fins drastically increase the surface area, allowing for faster heat transfer with less compressor effort.
Adaptive Fan Cycling: The 6-fan array can be wired to cycle independently based on ambient temperatures, preventing wasted electrical draw during cooler night hours or winter months.
Eco-Friendly Refrigerant Support: By supporting modern refrigerants like R507 and R134A, the unit helps facilities meet strict environmental compliance and reduce their carbon footprint.
Reduced Power Spikes: The internal electrical architecture minimizes inrush current during compressor startup, protecting the facility's power grid and reducing peak demand charges.
Different commodities require vastly different thermal environments. This condensing unit is highly adaptable, providing precise climate control across a multitude of commercial sectors.
Agricultural Preservation: Maintains the crisp texture and vibrant color of freshly harvested vegetables and fruits by preventing moisture loss and cellular degradation.
Meat & Poultry Freezing: Delivers the rapid temperature drop required to safely freeze large volumes of meat, preventing bacterial growth and preserving protein integrity.
Seafood Processing: Capable of reaching the ultra-low temperatures necessary for deep-freezing ocean catches immediately upon arrival at processing centers.
Pharmaceutical Storage: Provides the unwavering temperature stability required for sensitive vaccines, biological samples, and chemical compounds.
Protecting your investment requires comprehensive safety mechanisms. Our units undergo rigorous factory testing and are equipped with advanced fail-safes to prevent catastrophic damage.
Dual Pressure Safeguards: Integrated high and low-pressure controllers automatically disengage the compressor if system pressures deviate from safe operating parameters.
Thermal Overload Protection: Built-in sensors monitor motor winding temperatures, instantly cutting power to prevent electrical fires or motor burnout.
Phase Sequence Monitoring: Protects the compressor from reverse rotation and phase loss, which are common causes of mechanical failure in industrial electrical grids.
Rigorous Factory Testing: Every copper tube and welded joint undergoes intense pressure and leak testing before leaving the assembly line, ensuring hermetic perfection.
If you don't know which model is suitable for you, please contact we without hesitation, after tell us your requirements, we shall be glad to give you our professional advise.
And if all this model don't suit for you, we have advanced software and professional team of engineers can design product for you.
We can provide designing data and prodcution drawings.
We have a wealth of exhibition experience, where we continuously showcase our products, exchange technologies and listen to customer demands. These are some real-time photos from the exhibition site, witnessing every step of our joint growth with the industry.
The standard products are ready for immediate use, while the customized ones are specially made for you. The difference lies not only in the product itself, but also in the depth of coordination throughout the entire service process.
From the initial communication of the plan to the satisfactory feedback received after the final product was delivered，we have customized products for many customers, these are some projects we did before，Covering various needs and scenarios.
To meet various scenarios and requirements, we have also introduced more product categories, aiming to provide you with a more comprehensive experience. Please click on each category label to quickly browse the preferred products.
-
Partnering with the right manufacturer is as critical as the equipment itself. We bring decades of industrial expertise, a commitment to technological advancement, and a proven track record of successful global deployments.
Extensive Industry Presence: We have a wealth of exhibition experience, continuously showcasing our innovations, exchanging technologies, and listening directly to the evolving demands of commercial operators worldwide.
Uncompromising Quality Assurance: From raw material selection to final crating, our quality control protocols are uncompromising, ensuring that every unit performs flawlessly upon arrival.
Rapid Global Delivery: Supported by a highly optimized supply chain, we ensure quick manufacturing turnarounds and reliable international shipping logistics.
Comprehensive After-Sales Support: Our commitment does not end at delivery. We provide robust technical support, maintenance documentation, and rapid parts availability to keep your operations running smoothly.
To further assist your procurement and engineering teams, we have compiled detailed answers to the most critical technical inquiries regarding our 6-fan condensing units.
How does the 6-fan configuration improve the overall cooling cycle?
The integration of six fans creates a massive, evenly distributed airflow across the entire surface of the condenser coil. This prevents hot spots and ensures that the refrigerant gas is rapidly cooled back into a liquid state, significantly increasing the compressor's efficiency and reducing the time required to bring the cold room down to the target temperature.
Can this condensing unit be customized for ultra-low temperature requirements?
Yes. While standard configurations handle medium to low temperatures (-30℃ to +15℃), our engineering team can modify the compressor type, refrigerant selection (e.g., optimizing for R404A or R507), and lubrication systems to accommodate ultra-low temperature applications required for specific medical or deep-freeze seafood storage.
What safety mechanisms are integrated to prevent compressor failure?
The unit is equipped with a comprehensive suite of mechanical and electrical protections. This includes high/low-pressure switches, crankcase heaters to prevent liquid slugging during startup, oil separators to ensure continuous lubrication, and phase-loss/overload relays to protect the electrical windings from grid fluctuations.
How does the reciprocating compressor handle fluctuating thermal loads?
Reciprocating (piston) compressors are inherently robust and highly responsive to load changes. When fresh, warm inventory is loaded into the cold room, the compressor's high volumetric efficiency allows it to rapidly extract the sudden influx of heat, stabilizing the environment much faster than lighter-duty alternatives.
